Main technical features
1. Surface installation does not require special foundation preparation, and the requirement for an open foundation makes installation simpler, safer, and more efficient;
2. It is very suitable for quick inspection, four-wheel alignment, and body maintenance of supercars, ordinary cars, SUVs, etc;
3. Adopting high-quality sealing rings imported from Italy;
4. Choose high-quality power units that are durable and operate safely and reliably;
5. Safety voltage control system to avoid the danger of high voltage electric shock;
6. Pneumatic unlocking device minimizes machine operating noise to the greatest extent possible;
7. 24V safety voltage control system to avoid the danger of high voltage electric shock;
8. It can independently level a single platform, making debugging easier;
9. Equipped with hydraulic lock and built-in pressure detection function;

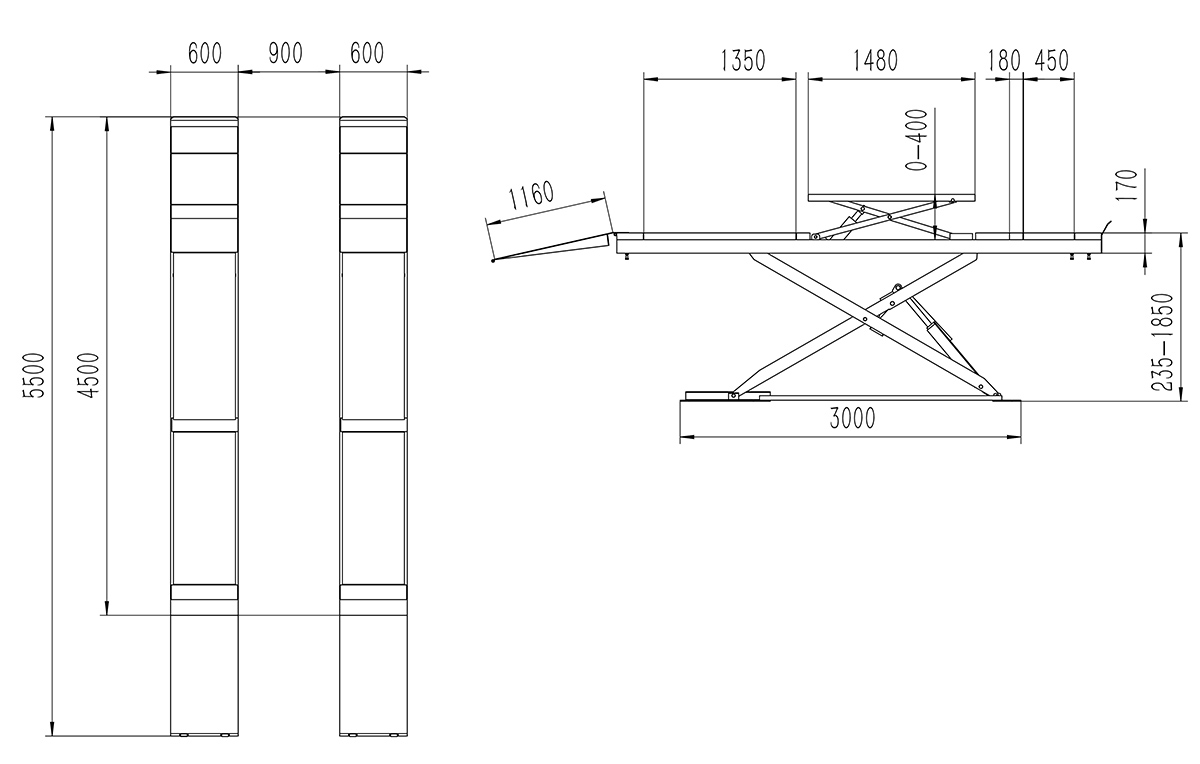

Model | YQJ-3500D |
Lifting capacity | 3500KG |
Lifting Height | 1850mm |
Secondary lifting height | 400mm |
Minimum height | 235mm |
Motor Power | 2.2KW |
Gas source requirements | 6-8bar |
Rated oil pressure | 16-18MPa |
Lifting time | ≤50s |
Power requirements | Customized according to customer requirements |
